Microcomputer Three Phase Relay Protection Tester Digital Relay Tester

Name: Microcomputer Three Phase Relay Protection Tester Digital Relay Tester
Brand: XZH TEST
Price: 1 USD

Wholesale Microcomputer Three Phase Relay Protection Tester Digital Relay Tester from china suppliers

Certification : ISO,CE

Brand Name : XZH TEST

Model Number : XHJB634

Place of Origin : Xi'an, Shaanxi, China

MOQ : 1 unit

Payment Terms : T/T

Supply Ability : 2000PCS/Year

Delivery Time : 5-8 days

Packaging Details : wooden case

Model NO. : XHJB634

LCD Display : With LCD Display

Customized : Customized

Transport Package : Exported Wooded Case

Trademark : XZH TEST

Origin : China

Customization : Available

After-sales Service : Warranty Certificate

Warranty : 12 Months

Contact Now

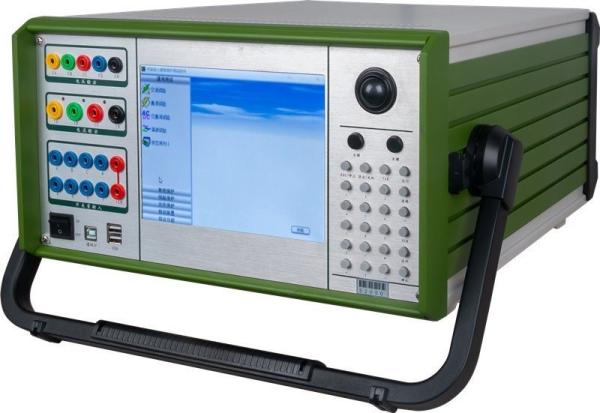

Xzh Test Microcomputer Three Phase Relay Protection Tester Digital Relay Tester

Product name: Three Phase Relay Protection Tester
Model: XHJB634 (3 phase) with different color

Product description:

1.High performance Industrial control computer is adopted as the controlling computer, through which you can run the windows operating system directly.
2.8.4"LCD display, tracking ball and optimized keyboard are allocated on the faceplate of this tester, which can be used without the external mouse and keyboard.
3.USB interface, 10-100M net mouth and serial communication interface are located on the back plate of this tester, through which you can access data, communicate data and upgrade software conveniently.

4.The whole process and the result of the test will all be showed on the LCD.
5.The English operational interface of the complete set is very friendly and convenient.
6.The tracking ball and keyboard on the faceplate will implement the operation. The operation is simple and convenient, and is easy to be mastered. Operator only needs a little knowledge of computer.
7.Keyboard and mouse interface are also allocated on the faceplate. If you would like to use the external mouse and keyboard, through pluging them with corresponding interfaces, you can operate this tester just like operate a desk-top computer.
Technical Parameters

Single phase current output	0~40A, Output Precision 0.2 degree
3 phase parallel current output	0~120A
Output time	0-10A Continuously,10-20A≥60", >20A≥10"
Maximum output power of Phase current	450VA
AC voltage	single phase 4X120V
Output power	≥60VA/phase
DC current	single phase-10A~+10A power≥200VA
DC voltage	single phase-150V~+150V power≥100VA
Frequency range	1-2000Hz Frequency resolution:1mHz
Harmonic time	2~40
Power supply	220V±10% 50Hz±10%

Microcomputer Three Phase Relay Protection Tester Digital Relay Tester
